UL FCC 2ft*2ft 30W/36W/40W/50W/65W Internal Driver LED Flat Panel Light 3000K/3500K/4000K/4500K/5000K

UL FCC 2ft*2ft 30W/36W/40W/50W/65W Internal Driver LED Flat Panel Light 3000K/3500K/4000K/4500K/5000K

  • Model Number:
  • SYH-UPL6630/SYH-UPL6636/SYH-UPL6640/SYH-UPL31236/SYH-UPL31240/SYH-UPL61240
  • Power:
  • 30W/36W/40W/50W/65W
  • Size:
  • 2ft*2ft
  • Input Voltage:
  • 100-277V
  • Material:
  • Aluminum
  • Color Temperature:
  • 3000/3500/4000/5000K



Features

* 90% uniformity across theemitting surface;

* High quality LED chips with 9000 hrs LM-80 certification;

* High efficacy up to 1301m/w;

* 50,000 hours long life;

* Hanging chains are included;

* High quality aluminum LED board for thermal dissipation;

* 1-10v dimming available.


Parameters

Item Number Rated Wattage* LxWxH (ft) CCT (Kelvin)* Rate Flux (Lm) * CRI (Ra)* Pack Qty (Pcs) Finishing Color Dimmable
LED Panel Light
SYH-UPL6636 36W 2x2x0.11 4000 4839 >80 4 White 1-10V
SYH-UPL6636 36W 2x2x0.11 5000 4988 >80 4 White 1-10V
SYH-UPL6640 40W 2x2x0.11 4000 5270 >80 4 White 1-10V
SYH-UPL6640 40W 2x2x0.11 5000 5480 >80 4 White 1-10V
SYH-UPL31240 40W 4x1x0.11 4000 5380 >80 4 White 1-10V
SYH-UPL31240 40W 4x1x0.11 5000 5450 >80 4 White 1-10V
SYH-UPL61240 40W 4x2x0.11 4000 5439 >80 2 White 1-10V
SYH-UPL61240 40W 4x2x0.11 5000 5645 >80 2 White 1-10V
SYH-UPL61250 50W 4x2x0.11 4000 6770 >80 2 White 1-10V
SYH-UPL61250 50W 4x2x0.11 5000 6834 >80 2 White 1-10V
*All data are related to the entire product

Due to the special conditions of the manufacturing processes of LED, the typical data of technical parameters can only reflect statistical

figures and do not necessarily correspond to the actual parameters of each single product which could differ from the typical value.

Lihgt output of product may vary with CCT, for technical information of other CCTs, please contact our sales representative.

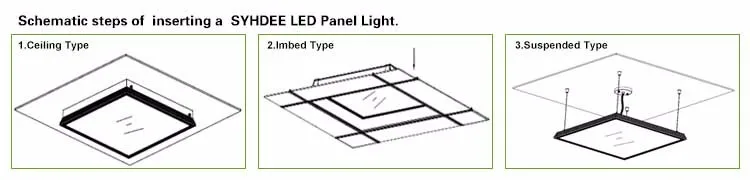

Installation Process
